How Is the Electric Actuator Composed?

Electric actuators play a vital role in modern automation systems, allowing precise control of the motion of various mechanisms. Whether in an industrial setting, robotics, aerospace, or medical equipment, electric actuators offer many advantages over traditional hydraulic or pneumatic systems. In order to understand how electric actuators work, we need to examine their composition and the interaction of the individual components.

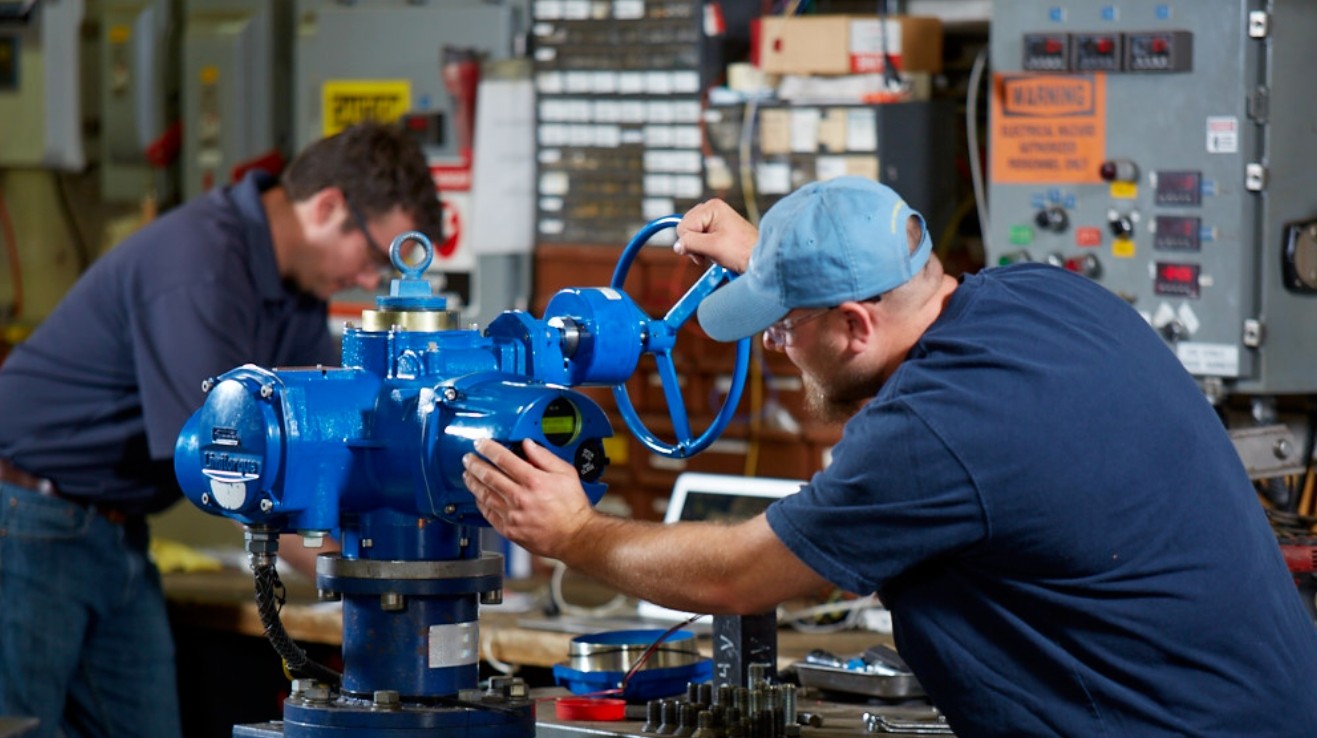

An electric actuator is a mechanical device that converts electrical energy into mechanical motion. It is responsible for initiating and controlling the movement of mechanisms or systems. By harnessing electrical power, these actuators provide precise positioning, speed control, and force output, making them highly versatile in a wide range of applications.

Electric actuators consist of several key components that work together to convert electrical energy into mechanical motion. Let's explore each component in detail.

The electric motor is the heart of an electric actuator, responsible for converting electrical energy into rotary motion. It provides the driving force required to move the actuator load. Electric actuators typically use brushless DC (BLDC) or stepper motors due to their efficiency, precision, and controllability.

The gearbox is a critical component in electric actuators, helping to regulate the speed and torque output of the motor. It consists of a set of gears that transmit power from the motor to the drive mechanism. The main function of the gearbox is to increase torque while reducing speed so that the actuator can generate enough force for precise movement.

The drive mechanism is responsible for converting the motor's rotary motion into linear or rotary motion, depending on the application requirements. Different types of drive mechanisms can be used in electric actuators such as screw drives, belt drives, or rack and pinion drives. The choice of drive mechanism depends on factors such as load capacity, speed, and accuracy.

The control system of an electric actuator consists of various components that regulate and monitor its operation. It includes sensors, controllers, and feedback systems. The sensors provide feedback on position, speed, and other variables to the controller, which processes the information and sends appropriate signals to the motor. The feedback system ensures precise positioning and enhances the overall performance of the actuator.

Depending on the specific application requirements, electric actuators use different types of motors. Brushless DC (BLDC) motors are widely used for their high efficiency, high torque, and precise speed control. Stepper motors are another popular choice, offering excellent positioning accuracy and holding torque. The choice of the motor depends on factors such as load capacity, speed, and control accuracy.

The power and torque of the motor are important considerations when designing an electric actuator. Power output determines the actuator's ability to generate the force needed to move a load, while torque affects its ability to overcome resistance and maintain stability. It is critical to select a motor with sufficient power and torque to meet the application requirements while ensuring smooth and precise operation.

Electric actuators employ various gear types within the gearbox to achieve the desired torque and speed output. Common gear types include spur, helical, planetary, and worm gears. Each gear type has unique advantages in terms of torque transfer, efficiency, and noise level. Selecting the proper gear type depends on factors such as required torque, speed, and smooth running.

The gear ratio in the gearbox determines the relationship between the rotational speed of the motor and the output speed of the actuator. It defines how many revolutions the motor needs to make for one revolution of the actuator output shaft. The gear ratio directly affects the speed and torque capabilities of the actuator. Additionally, the efficiency of the gearbox is a key factor to consider as it affects the overall energy consumption and performance of the actuator.

In some applications, electric actuators utilize a screw drive mechanism to convert the rotary motion of a motor into linear motion. Screws are combined with nuts or ball screw assemblies for precise linear motion. This type of drive mechanism is typically used in applications requiring high precision, such as CNC machine tools, 3D printers, and linear motion systems.

A belt drive is another type of drive mechanism used in electric actuators, where a system of belts or pulleys transmits the rotational motion of the motor to achieve linear or rotary motion. Belt drives are often preferred for applications that require high-speed operation because they provide smooth and quiet motion. They are commonly used in conveyor systems, printing presses, and automated assembly lines.

A rack and pinion drive utilizes a rack and pinion to convert the rotational motion of a motor into linear motion. The mechanism offers high precision, strength, and stability for applications requiring heavy loads and precise positioning. Rack and pinion drives are commonly found in robotics, CNC machining, and automotive steering systems.

Sensors play a vital role in the control system of electric actuators. They provide feedback on position, speed, temperature, and other relevant parameters to the actuator controller. Sensors commonly used in electric actuators include position sensors (such as encoders or potentiometers), temperature sensors, and limit switches. These sensors enable precise control and ensure that the actuator operates within the required parameters.

The controller is the brain of the electric actuator control system. They receive input from sensors, process the information and generate appropriate signals to drive motors and control the movement of actuators. Depending on the complexity of the application, the controller can be a simple microcontroller or an advanced programmable logic controller (PLC). They enable precise positioning, speed control, and integration with other automation systems.

Feedback systems in electric actuators ensure accurate and reliable operation. They involve comparing a desired position or movement with the actual position measured by a sensor. Feedback information is used to make adjustments and corrections, ensuring that the actuator reaches the desired position with high precision and repeatability. Feedback systems contribute to the overall stability, performance, and safety of the actuator.

In summary, understanding the components of an electric actuator is critical to understanding its function and application. Major components include motors, gearboxes, drive mechanisms, and control systems that work together to convert electrical energy into precise and controllable mechanical motion. Electric actuators offer many advantages in terms of accuracy, controllability, energy efficiency, and integration capabilities. They are widely used in industrial automation, robotics, aerospace, defense, and medical equipment. As technology continues to advance, electric actuators will play an increasingly important role in shaping the future of automation and engineering. If you want to buy electric actuators, welcome to contact us.
